HITACHI KOE 5.71 Inch Industrial LCD Display Panel SP14Q006 320RGBx240 QVGA 70PPI 14P

HITACHI KOE 5.71 Inch Industrial LCD Display Panel SP14Q006 320RGBx240 QVGA 70PPI 14P
HITACHI KOE 5.71 Inch Industrial LCD Display Panel SP14Q006 320RGBx240 QVGA 70PPI 14P HITACHI KOE 5.71 Inch Industrial LCD Display Panel SP14Q006 320RGBx240 QVGA 70PPI 14P HITACHI KOE 5.71 Inch Industrial LCD Display Panel SP14Q006 320RGBx240 QVGA 70PPI 14P

Image Grand :  HITACHI KOE 5.71 Inch Industrial LCD Display Panel SP14Q006 320RGBx240 QVGA 70PPI 14P

Détails sur le produit:
Lieu d'origine: La Chine
Nom de marque: hitachi
Certification: Rohs,CE,FCC
Model Number: SP14Q006
Conditions de paiement et expédition:
Quantité de commande min: 10pcs
Prix: Negotiation
Détails d'emballage: Emballage industriel
Délai de livraison: 4-5 jour ouvrable
Conditions de paiement: T/T, W, Western Union, MoneyGram
Capacité d'approvisionnement: 3000PCS par semaine

HITACHI KOE 5.71 Inch Industrial LCD Display Panel SP14Q006 320RGBx240 QVGA 70PPI 14P

description de
Qualité: Original tout neuf paquet: Emballage industriel original
Résolution: 320*240pixels style: 14PIN IPS
éclat: 150CD/M2 couleur: Monochrome
Rapport de contraste: 25 : 1 Vie active: heures 40k
Surligner:

SP14Q006 Industrial LCD Display Panel

,

FSTN LCD Display Panel

,

150cd/M2 Industrial LCD Display

HITACHI OR KOE 5.71Inch Industrial LCD Display Panel display SP14Q006 320(RGB)×240 QVGA 70PPI 14P 150 cd/m²



The SP14Q006 is a 5.7 inch diagonal FSTN-LCD display panel product from Kaohsiung Opto-Electronics Inc. (hereafter called KOE), with an integral WLED backlight system, without backlight driver, without touch screen. It features an operating temperature range of -20 ~ 70°C , a storage temperature range of -30 ~ 80°C , and the maximal vibration level of 1.2G (11.76 m/s²). It's general features are summarized by einklcd in the following: WLED Backlight, Matte . Based on its features, einklcd recommend that this model be applied to Industrial etc. According to the information stored in einklcd this model mass production on Q1, 2003 and last shippment on Q1, 2022, Now this model is discontinued. We inputted this model's specification on Dec 19 2012 for the first time, and the latest update on Dec 11 2021. If you want to embed SP14Q006 LCM in your future product, einklcd strongly recommend that you should contact with KOE or it's agent to learn lateast production and specification detail. The SP14Q006 production status marked on einklcd.com is for reference only and should not be used as the basis for the user's decision making.




Brand
KOE
Model P/N
SP14Q006
Diagonal Size
5.7"
Panel Type
FSTN-LCD, LCM
Resolution
320×240, QVGA 70PPI
Pixel Format
Rectangle
Active Area
115.185(W)×86.385(H) mm
Bezel Opening
122.0(W)×92.0(H) mm
Outline Size
167(W)×109(H) ×10(D) mm
Surface
Antiglare
Brightness
150 cd/m² (Typ.)
Contrast Ratio
25:1 (Typ.) (TM)
Viewing Angle
-
Display Mode
STN, Black/White mode, Transmissive
Best View on
6 o'clock
Response Time
336/148 (Typ.)(Tr/Td)
Display Colors
Monochrome
Lamp Type
WLED , 40K hours , Without Driver
Frequency
75Hz
Touch Screen
Without
Panel Weight
-
Application
HITACHI KOE 5.71 Inch Industrial LCD Display Panel SP14Q006 320RGBx240 QVGA 70PPI 14P 0
Signal Interface
Parallel Data (1ch, 4-bit) , 14 pins FPC
Input Voltage
3.3/5.0V (Typ.)(VDD)
Environment
Operating Temp.: -20 ~ 70 °C ; Storage Temp.: -30 ~ 80 °C

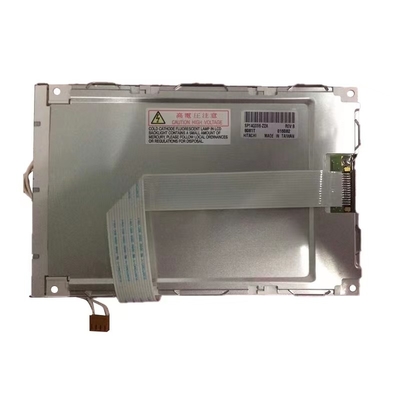

HITACHI KOE 5.71 Inch Industrial LCD Display Panel SP14Q006 320RGBx240 QVGA 70PPI 14P 1

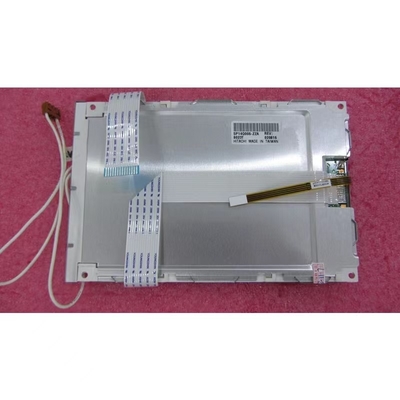

HITACHI KOE 5.71 Inch Industrial LCD Display Panel SP14Q006 320RGBx240 QVGA 70PPI 14P 2
